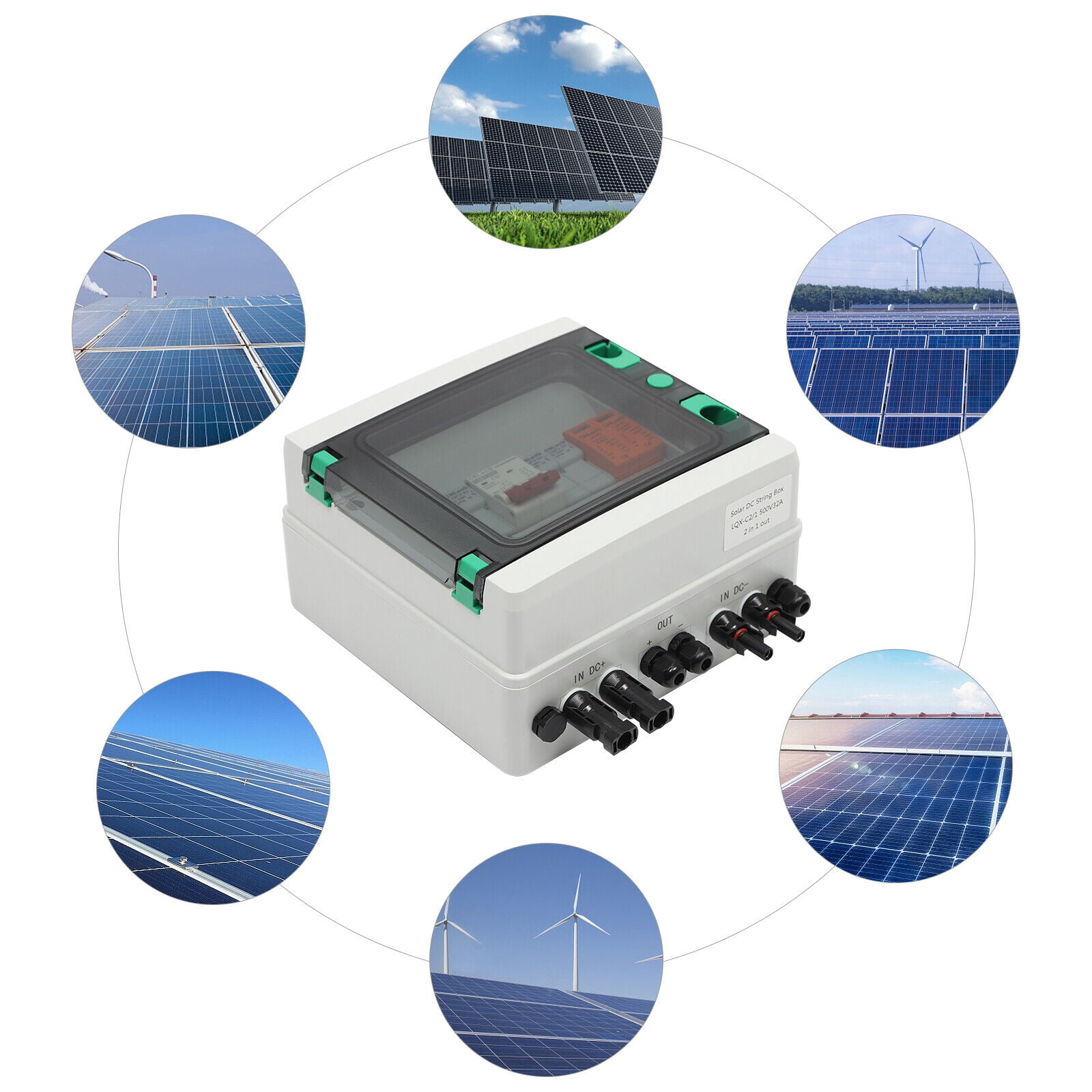

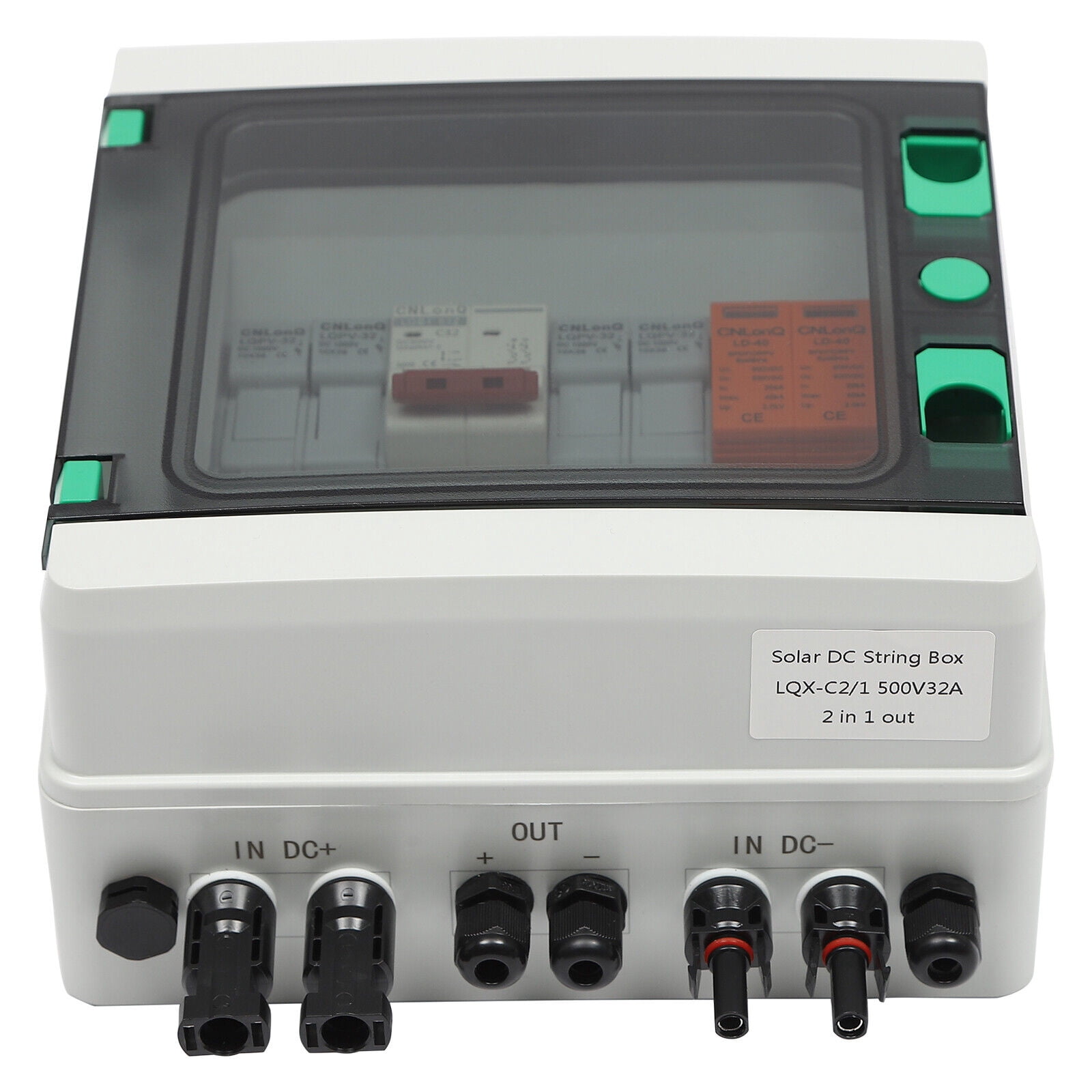

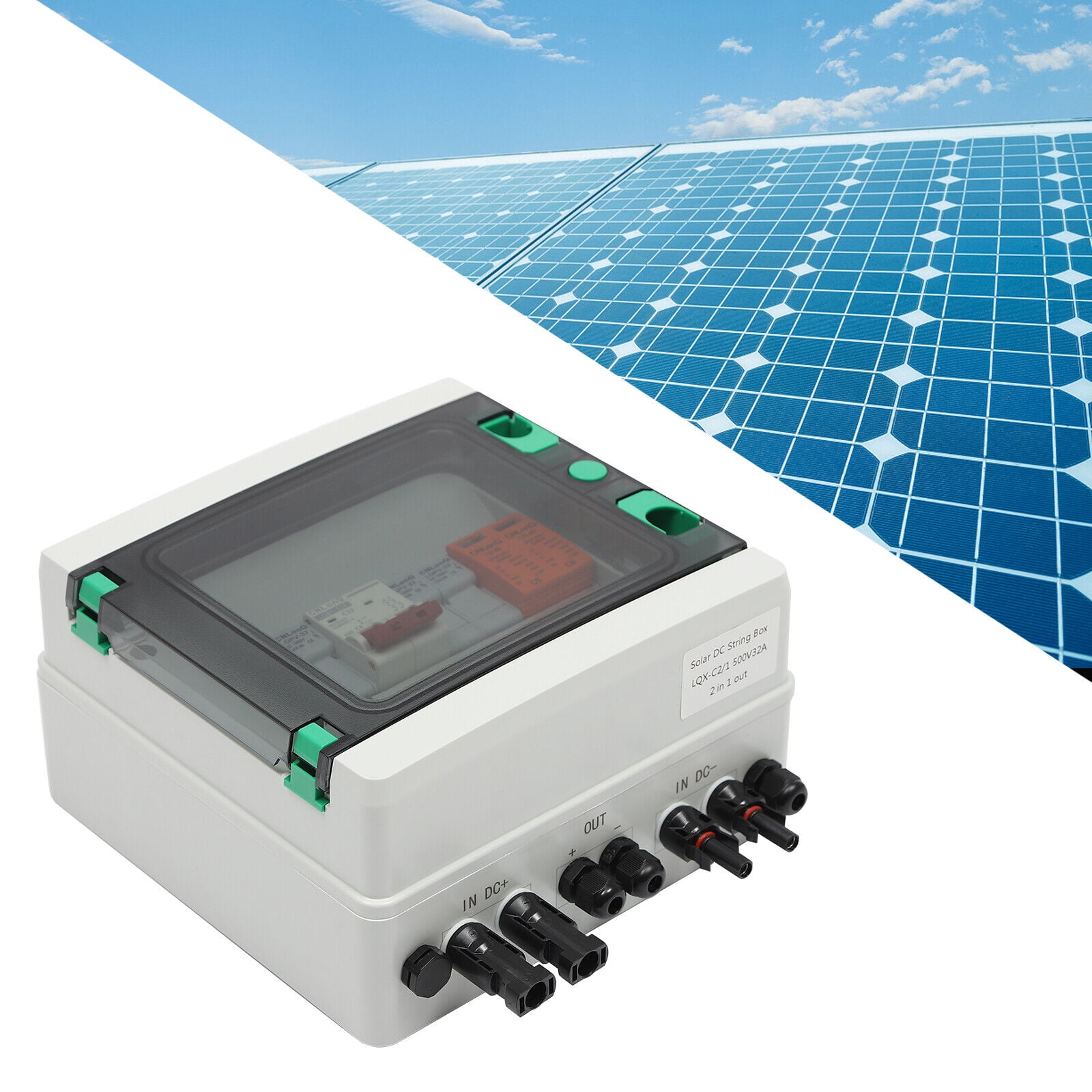

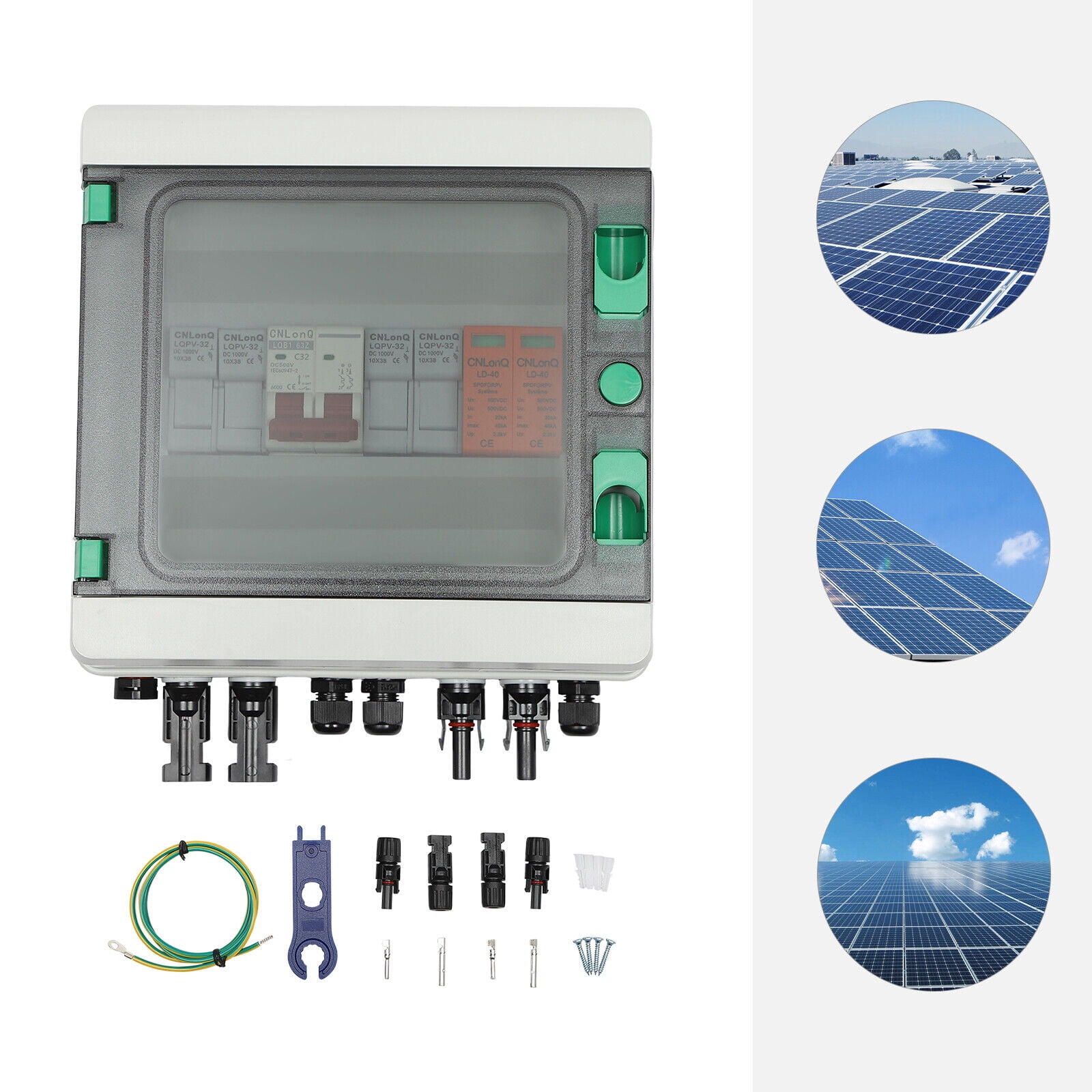

Solar Combiner Box 2-String Pv Combiner Box DC500v Solar Junction Box Solar Breaker Switch 32A Circuit Breaker Protector
Product details
| Management number | 230819012 | Release Date | 2026/06/18 | List Price | US$27.19 | Model Number | 230819012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

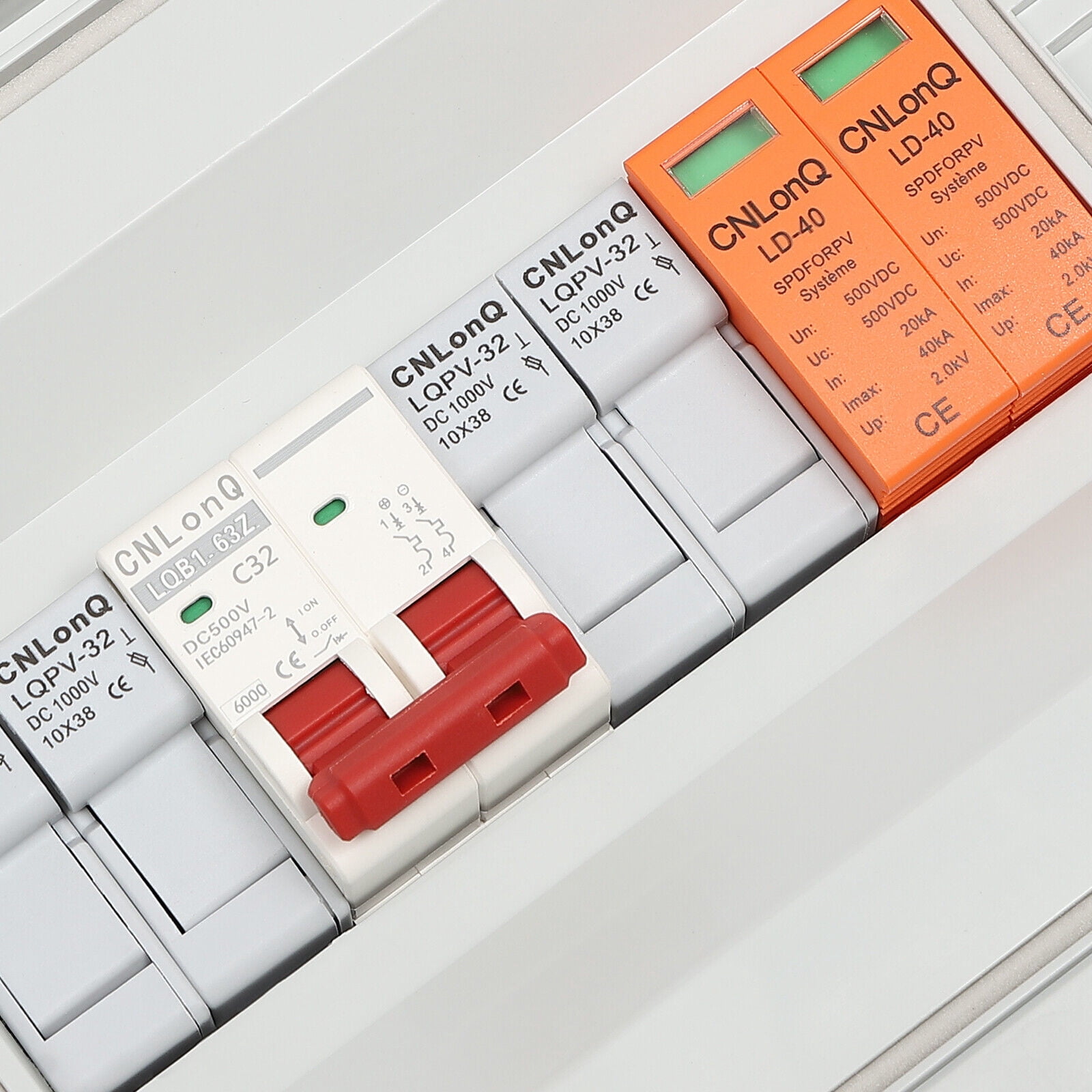

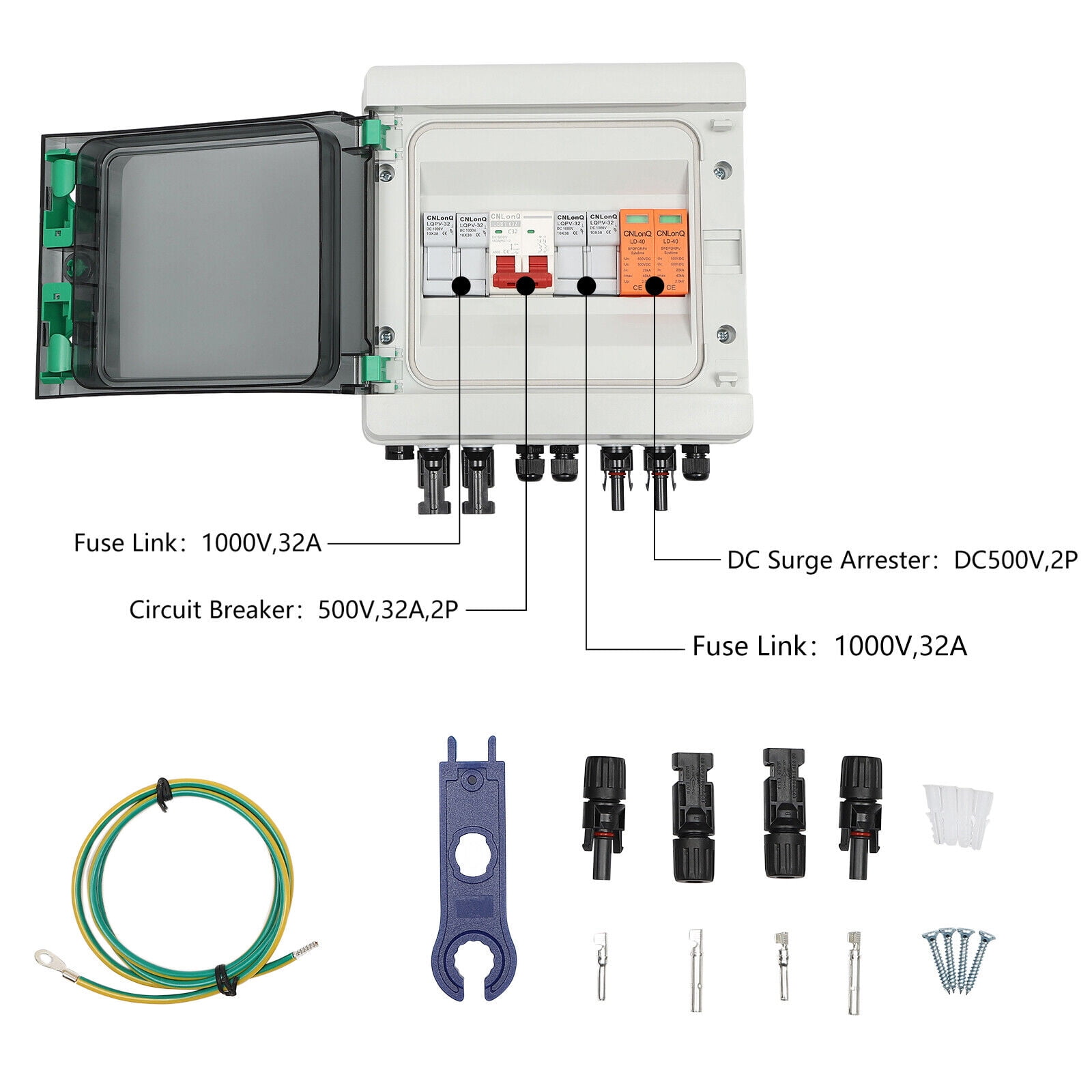

<p>Highly Functional: It can protect the amplifier from overload current or voltage damage while protecting the power supply to prevent short circuits from causing battery breakage and explosion. It can be manually powered off and reset, facilitating circuit inspection and maintenance.</p> <p>High Safety: Multiple protections including surge protection, overload protection, lightning protection, as well as reliable DC components, can provide ensure the usage safety.</p> <p>2 in 1 Out Design: This allows two inputs to be directly connected to one output, improving electricity utilization efficiency.</p> <p>Real-time Detection&Remote Control: It can be directly connected to the monitoring system through external data lines, achieving real-time monitoring and remote control of the system's operating status.</p> <p></p> <p>Specification</p> <p>Color: Black</p> <p>Input: 2 String</p> <p>Output: 1 String</p> <p>Material: PC, ABS</p> <p>Maximum Voltage: 500V</p> <p>Protection Degree: IP65</p> <p>Impact Resistance Degree: IK10</p> <p>Solar DC String Box Model: LQX-C 2/1</p> <p>DC Circuit Breaker Model: LQL7/LQB1</p> <p>DC Surge Arrester Model: LD-40</p> <p>DC Fuse Holder Model: LQPV</p> <p>Rated Insulation Voltage (Ui): 500V</p> <p>DC Fuse Holder: DC 1000V</p> <p>Fuse Link: 1000V, 32A</p> <p>Circuit Breaker: 500V, 32A, 2P</p> <p>DC Surge Arrester: DC 500V, 2P</p> <p>Max DC Short Circuit Current Per Input: 15A (Changeable)</p> <p>Maximum Current Output/Rated Current (Le): 32A</p> <p>Cable Input Entry: PG 2.5-6mm², MC4 2.5-6mm²</p> <p>Output Cable Gland: PG 2.5-6mm², MC4 2.5-6mm²</p> <p>Max Operation Voltage/Rated Working Voltage (Ucpv): 500V</p> <p>Maximum Discharge Current: 40KA</p> <p>Product Size: 22*25*12cm/8*9*4inch</p> <p>Net Weight: 1.7kg/3.7lbs</p> <p>Gross Weight: 1.8kg/3.9lbs</p> <p>Package Size: 25.5*22.3*14.5cm/10*8*5inch</p> <p>Package Included</p> <p>1* Solar DC String Box</p> <p>1* English Manual</p> <p>Other Accessories</p> <p>Notes</p> <p>Please press the button correctly to avoid damaging the circuit breaker and use it under a suitable operating temperature to avoid overheating and operation stopping.</p> <p>Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.</p> <p>Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.</p>
- Waterproof&Dustproof and Impact-resistant: It is well-sealed to be highly waterproof and dustproof (IP65). It also has a high impact resistance level (IK10), allowing it to be used in harsh environments.
- Multiple Uses: Designed with reset lever, it is not only a DC circuit breaker but also an arc extinguishing switch to meet your various usage needs.
- Selected Materials: Made of high-quality ABS and PC, it can resist wear, shock, and deformation, allowing it to be installed between the solar panel and the solar inverter.

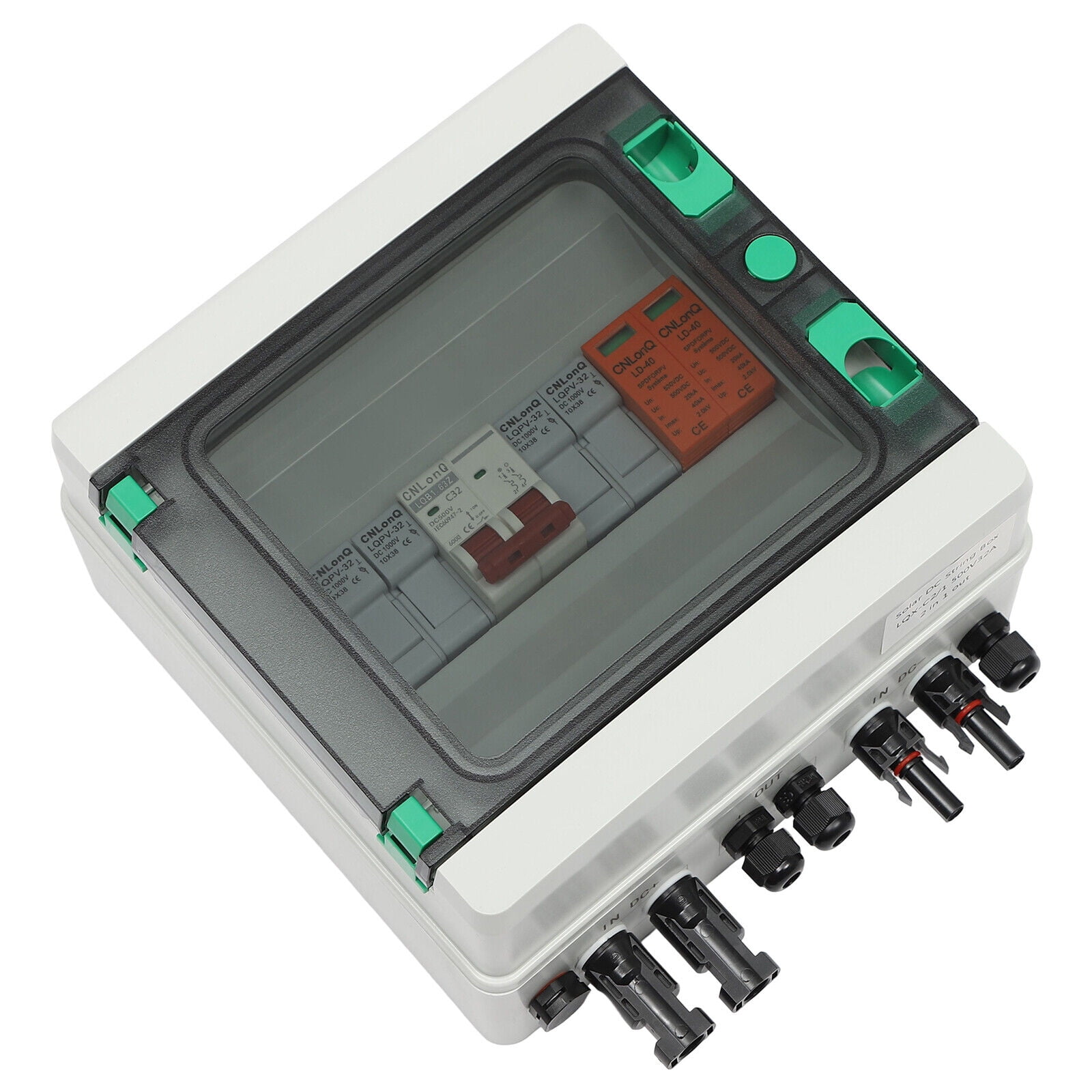

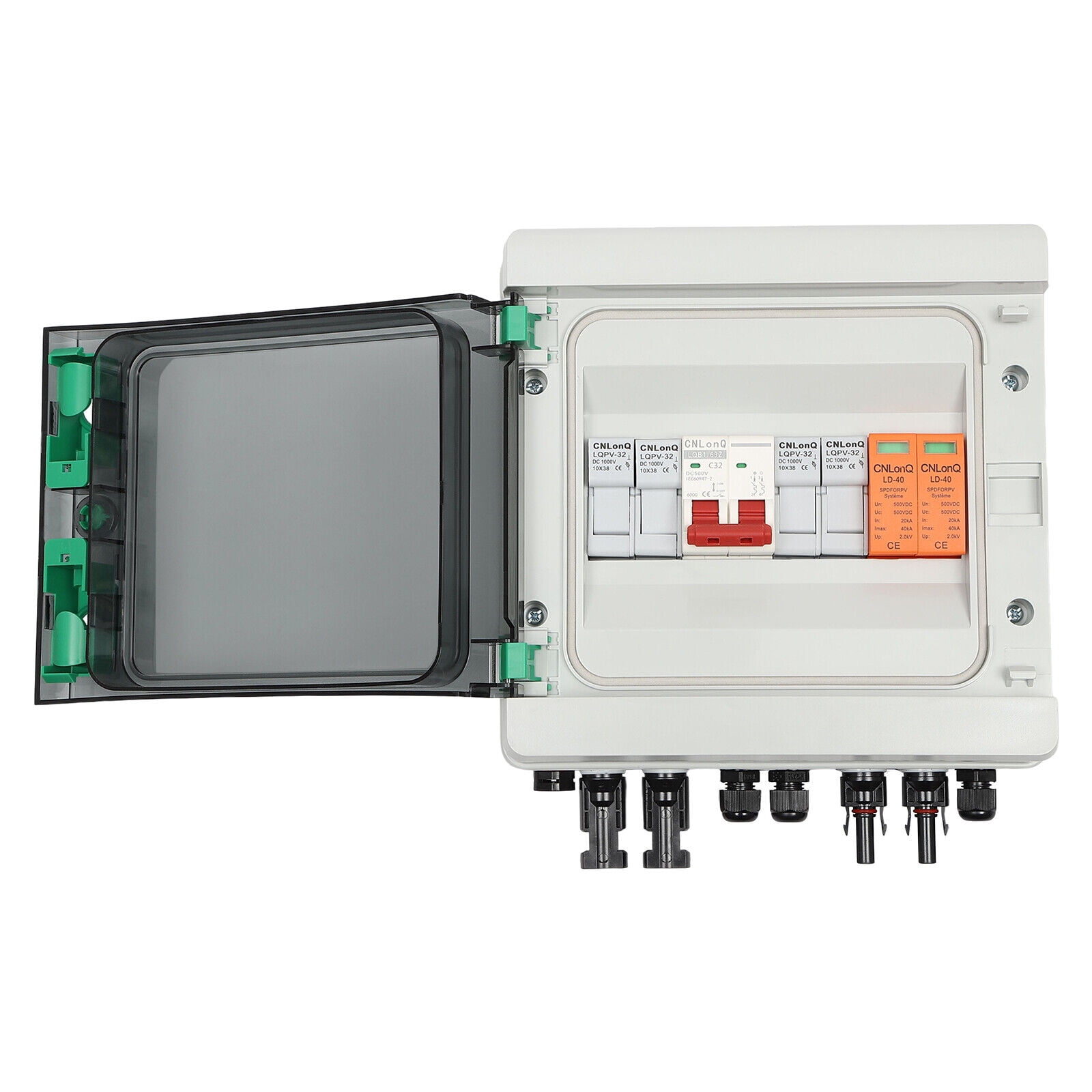

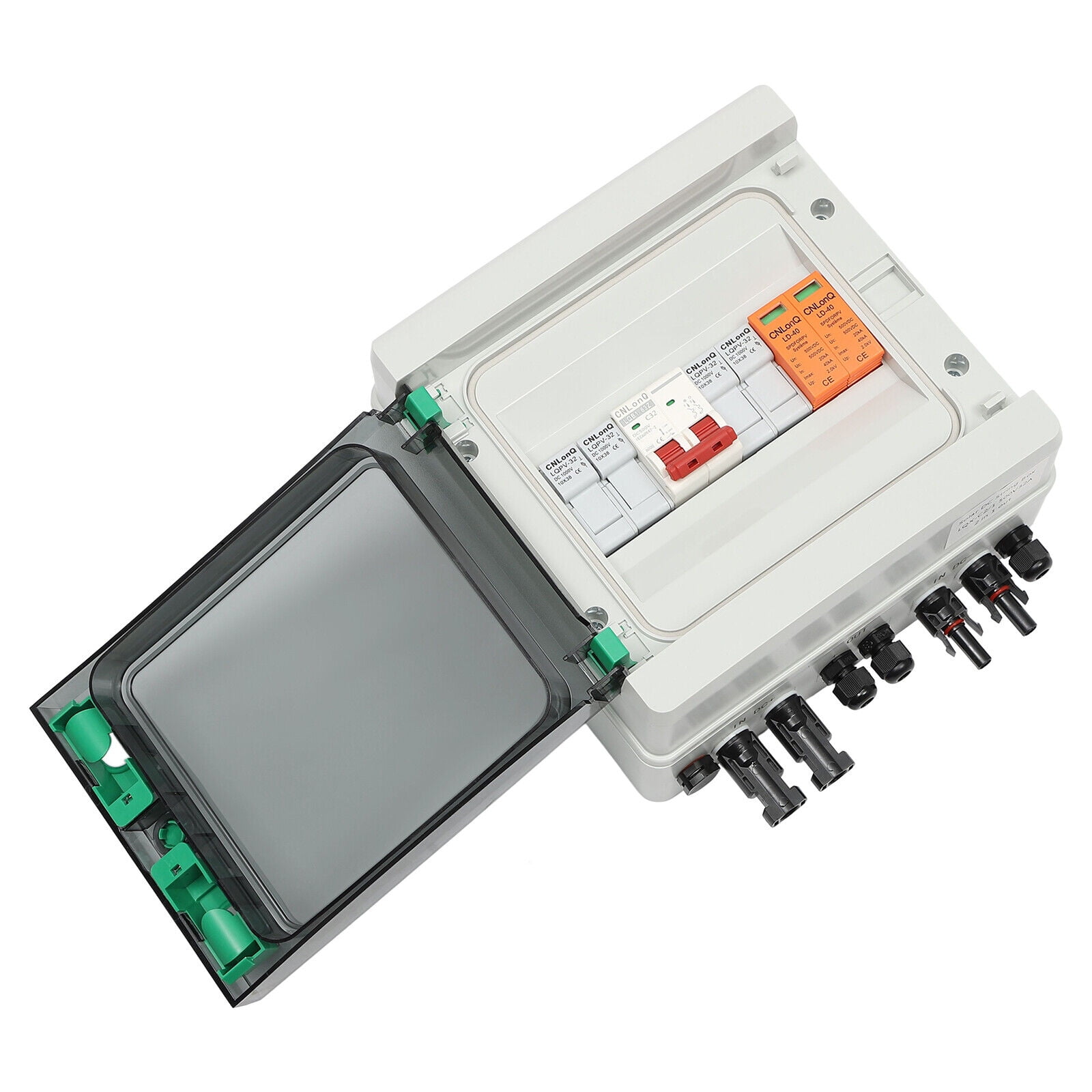

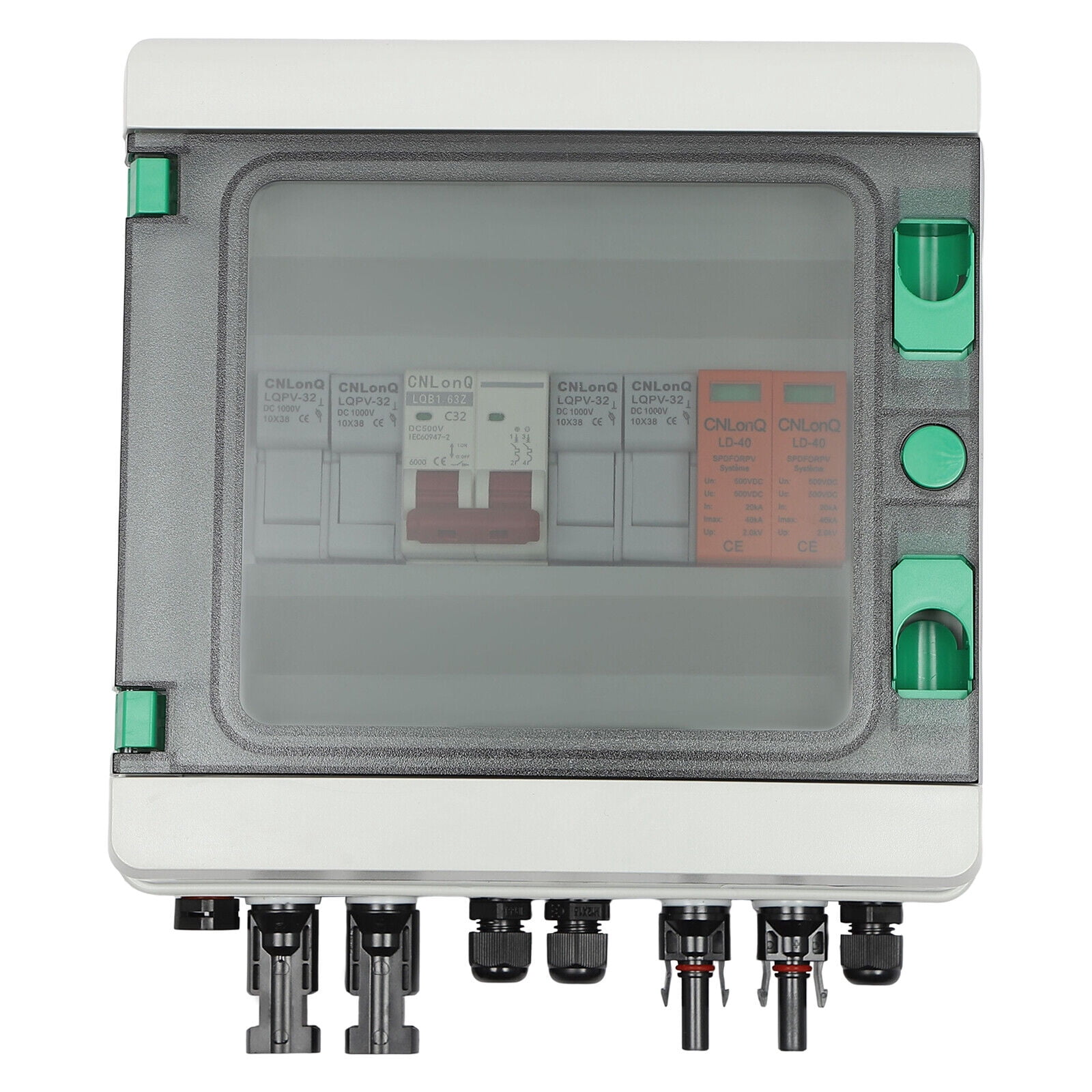

- Practical Cover: The clear cover can well seal the product to achieve waterproof, moisture-proof, and dustproof while making it convenient to check the status of the circuit breaker at any time.
- Round Corners: The round corners rather than sharp can prevent scratching your hands.
- Application： It is mainly used for output protection of outdoor solar panels, motor homes, electric vehicles, UPS batteries, photovoltaic arrays, RV solar energy, and inverters, and is suitable for networked photovoltaic solar systems and off-grid solar power generation systems.
| Amps | 32 Amps |
|---|---|
| Circuit breaker type | DC Circuit Breaker |
| Number of poles | 2 |
| Volts | 500 V |
| Brand | Unbranded |

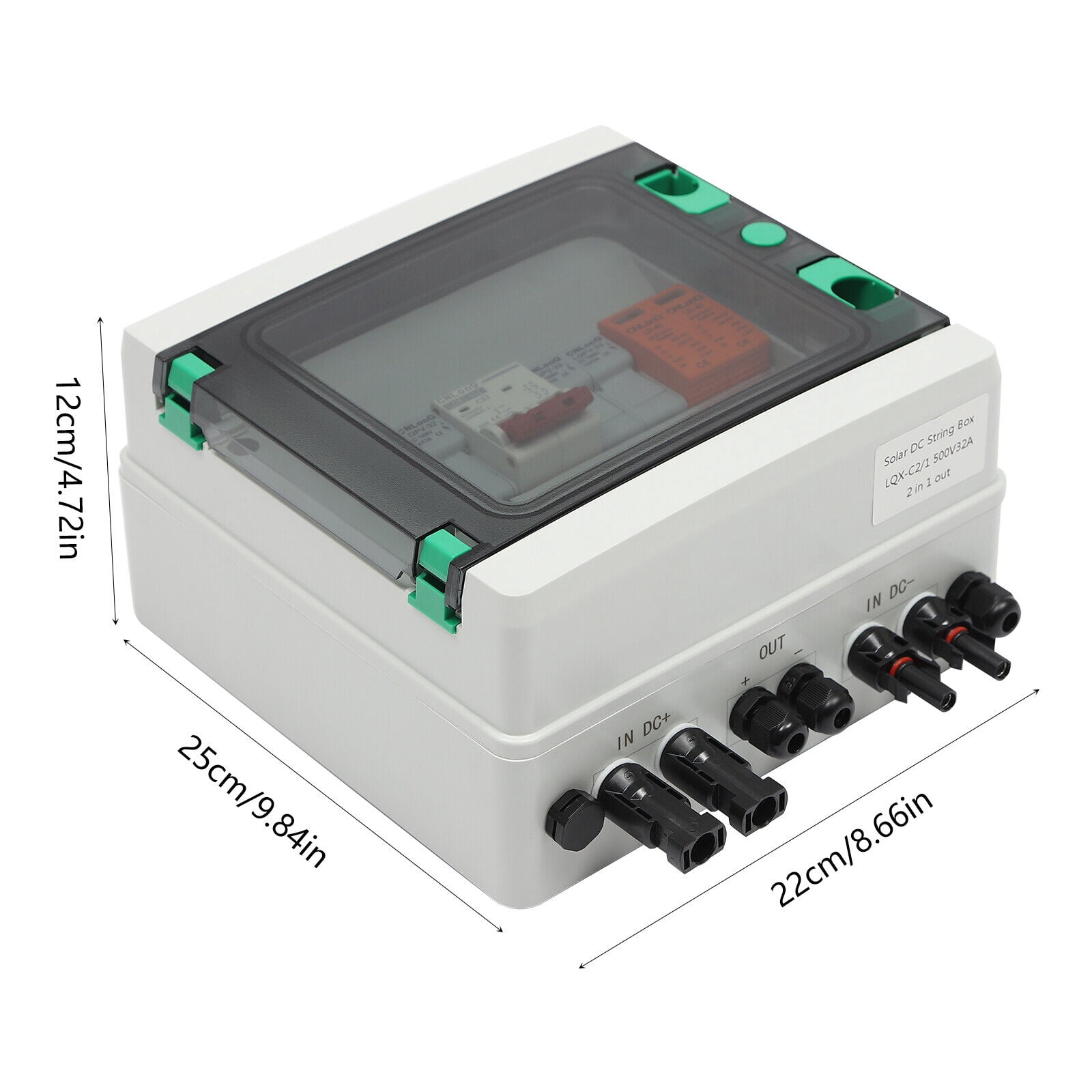

| Size | 22*25*12cm/8*9*4inch |
| Features | Waterproof, Remote Controlled |
| Has written warranty | No |
| Model | LQX-C 2/1 |
